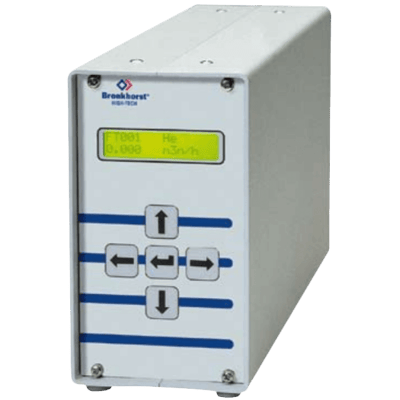

SERIES E-7000 Digital Power Supply / Readout System
Brand: Bronkhorst
The Bronkhorst High-Tech E-7000 Series is designed to easily enable the user through a menu format to program and power one Mass Flow Meter/Controller, Pressure Transducer/Controller or other device.
The micro-processor based unit offers great flexibility in indication of tags, fluid names and counter units in combination with measuring and setpoint values, both in percentages or actual units. Furthermore polynomial functions of maximum.
FeaturesA user friendly readout/control/alarm/totalization module with 5-key pushbutton menu format for:
- Operation with digital or Analog instruments
- Direct or percentage reading
- Internal/external setpoint control mode
- Master/slave control mode
- Totalizer/batch-counter function
- One programmable alarm function
- One NO/NC relay
- Storage of polynomial calibration functions (max. 8 per channel)
- Settings protected by means of password
- Setpoint slope control
- Easy access to purge mode/shutoff mode
- HOST CONTROL by personal computer, by means of an RS-232 or Profibus interface 8 calibration curves, offering an accuracy of ±0.5% of reading plus ±0.1% of full scale, can be stored.
Specifications
Brand
Approvals & Certifications
- ISO 9001, 14001
Communication
- FLOW-BUS
- RJ45
- RS-485
Display
- 2 Line x 16-Character LCD
Output
- 0-10 Vdc
- 0-20 mA
- 0-5 Vdc
- 4-20 mA
Power Supply
- 15 Vdc
- -15 Vdc
- 2 A
- 300 mA
Supply Voltage
- 100-240 Vac
- 24 Vac/dc
