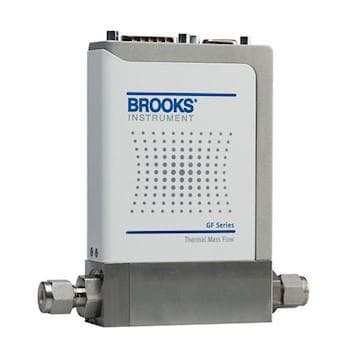

GF40 Series Elastomer Sealed Thermal Mass Flow Controller/Meter

Brand: Brooks Instrument
Request Information
Favorite

Multiple gases in one device equals maximum process flexibility and productivity.

The GF40 Series elastomer sealed mass flow controllers and meters with Brooks Instrument’s exclusive MultiFlo™ technology provide the perfect choice for systems, processes and facilities that use a variety of gases, change gas types frequently or need to re-range while preserving gas measurement and control accuracy.

It enables a new level of process flexibility combined with unprecedented flow measurement and control performance.
Features
  • Programmable multi-gas/multi-range capabilities
  • Brooks® MultiFlo™ gas database contains thousands of native gas runs to establish correction functions
  • Sub-1 second flow response time and accuracy of 1% set point for demanding applications
  • Well suited for a variety of gases
  • Fast response, Hastelloy sensor
  • Easily accessible diagnostic service port is independent of tool communication
  • Multi-protocol communication options include DeviceNet™, EtherCAT®, Profibus® and RS-485 analog interface
Benefits
  • MultiFlo™ technology enables new gas calibrations and full-scale ranges without removing the MFC from the gas line, maximizing process uptime
  • MultiFlo™ programming is simple and user-friendly; new gas can be selected in under 60 seconds
  • OEMs and large end users can greatly reduce the number of gas and range-specific controllers they inventory
  • Excellent process gas accuracy backed by superior metrology systems and calibration based on global standards
  • Corrosion-resistant sensor provides unmatched long-term stability ensuring maximum yield and throughput
  • User-accessible service port simplifies troubleshooting and diagnostic tasks
  • Variety of elastomer seals provide cost performance flexibility across range of applications
  • Multi-protocol communication interface supports integration into existing systems

View Details

Specifications

Brand

Flow Range (Full Scale Capacity)

  • 3 sccm to 50 slpm (N2 Eq.)

Flow Accuracy

  • ± 1% of SP 35-100%
  • ± 0.35% of FS 2-35%

Repeatability/Reproducibility

  • < ± 0.20% SP

Linearity

  • ±0.5% FS (Included in Accuracy)

Response Time

  • Normally Closed Valve: < 1 sec (within 2% for Steps 0-10 Through 0-100%)
  • Normally Open Valve < 3 sec (within 2% for Steps 0-10 Through 0-100%)

Control Range

  • 2 to 100%

Zero Stability

  • < ±0.5% FS Per Year

Temperature Range

  • 5° to 50° C (41° to 122° F)

Maximum Operating Pressure

  • 150 psig (10 bar)

Differential Pressure Range

  • 3 to 860 sccm (7 to 45 psid)
  • 861 to 7,200 sccm (15 to 45 psid)
  • 7,201 to 50,000 sccm (25 to 45 psid)

Wetted Material

  • 316 Stainless Steel
  • Hastelloy C-22
  • 1707 PH
  • 430 SS

Seal Material

  • Viton, Buna, Kalrez, EPDM or Neoprene

Surface Finish

  • 32µ inch Ra

Valve Options

  • Normally Closed
  • Normally Open
  • Meter (No Valve)

Communication

  • DeviceNet, EtherCAT®, Profibus®, RS485

Power Supply/Comsumption

  • Analog / RS-485: 12-24 Vdc, 7 Watt/8 Watt
  • DeviceNet™: 11-25 Vdc, 7 Watt/8 Watt
  • EtherCAT® / Profibus®:  13.5-27 Vdc, 7 Watt/8 Watt

Certifications & Approvals

  • CE: EN61326: 2006 (FCC Part 15 & Canada IC-subset of CE Testing) Safety EN61010-1
  • RoHS Directive (2011/65/EU)
  • REACH Directive EC 1907/2006

  • Solar Cell Chemical Vapor Deposition Systems
  • Life Sciences Bioreactors
  • Vacuum Processes
  • Nanotechnology/MEMS Fabrication
  • Plasma, Glass and Web Coating Systems
  • Excellent Option for Manifold/Gas Delivery Systems
