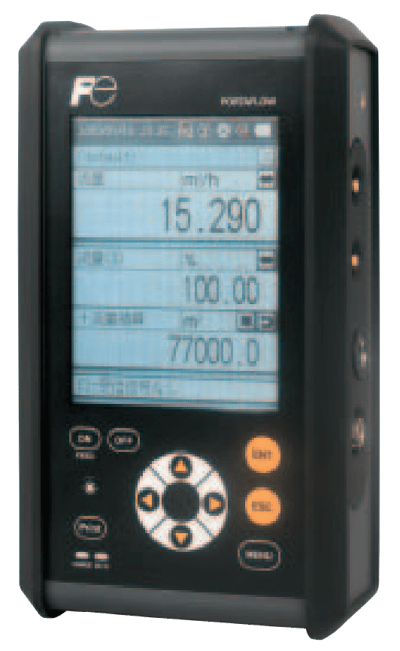

PORTAFLOW-C is a portable type ultrasonic flowmeter utilizing the transit time measuring method, using a clamp-on type detector.
It is a compact and lightweight instrument incorporating the latest electronics and digital signal processing technologies, realizing high performance and easy operation.
Features- Full variety of detectors
- Flow velocity profile measurement
Specifications
Accuracy
- ± (0.0075 to 0.02 m/sec) - FSSH
- ± (0.0113 to 0.03 m/sec) - FSSE
- ± (0.02 to 0.05 m/sec) - FSSD
- ± (1 to 1.5 % of Rate) - FSSC, FSSE
- ± (1 to 2.5 % of Rate) - FSSD
- ± 1 % of Rate - FSSH
Ambient Temperature Range
- -20° to 60° C (-4° to 140° F)
Cable Length
- Extension Cable: 164 feet (50 metres)
- Extension Cable: 32.8 feet (10 metres)
Cover Material
- Sensor: SUS304 Stainless Steel - FSSE
Diameter
- Pipe Internal Dameter: 1.96 to 47.24” (50 to 1,200 mm) - FSSC
- Pipe Internal Diameter: 0.5 to 11.8” (13 to 300 mm) - FSSD
- Pipe Internal Diameter: 1.96 to 15.74” (50 to 400 mm) - FSSH
- Pipe Internal Diameter: 7.87 to 236.2” (200 to 6,000 mm) - FSSE
Electrical Connectors
- BNC Connector - FSSC, FSSD, FSSH
- Coaxial Cable
- Screw Terminal - FSSE
Enclosure, Body Material
- PBT - FSSE
- Plastic - FSSC, FSSD, FSSE
- SUS304 Stainless Steel - FSSH
Environmental Protection
- IP52 - FSSD, FSSH
- IP65 - FSSC
- IP67 - FSSE
- IP68
Flow Capacity
- Velocity: 0 to 32 m/sec - FSSD, FSSE, FSSH
Frequency
- Sensor: 0.5 MHz - FSSE
- Sensor: 2 MHz - FSSD, FSSH
Humidity
- Ambient: 100 % Relative Humidity - FSSE
- Ambient: 90 % Relative Humidity - FSSC, FSSD, FSSH
Materials of Construction
- Guide Rail (FSSC, FSSD), Mounting Belt/Wire: Plastic
- Guide Rail: Aluminum Alloy - FSSC, FSSD, FSSH
- Lining Material: Mortar
- Lining Material: Pyrex Glass
- Lining Material: Rubber
- Lining Material: Tar Epoxy
- Lining Material: Teflon
- Mounting Belt/Wire, Guide Rail (FSSH): SUS304 Stainless Steel
- PBT - FSSD
- Pipe: Acrylic
- Pipe: Aluminum - FSSD, FSSE, FSSH
- Pipe: Carbon Steel - FSSD, FSSE, FSSH
- Pipe: Cast Iron
- Pipe: Copper - FSSD, FSSE, FSSH
- Pipe: Ductile Cast Iron
- Pipe: FRP
- Pipe: PEEK
- Pipe: Polypropylene
- Pipe: PVC - FSSD, FSSE, FSSH
- Pipe: PVDF
- Pipe: Stainless Steel - FSSD, FSSE, FSSH
Measuring Error
- 2 to 5 %
Measuring Range
- 0 to 32 m/sec
Process Temperature
- Fluid: -40° to 100° C (-40° to 212° F) - FSSD
- Fluid: -40° to 120° C (-40° to 248° F) - FSSC
- Fluid: -40° to 200° C (-40° to 392° F) - FSSH
- Fluid: -40° to 80° C (-40° to 176° F) - FSSE
