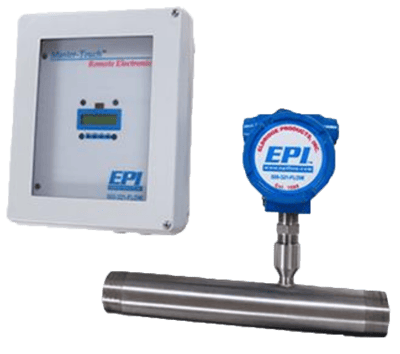

Master-Touch Series 8000MP-8100MP Flow Meter
Brand: Eldridge Products, Inc (EPI)The Master-Touch Series 8000/8100MP flow meters are for use in hazardous area locations.
Inline style thermal mass flow meters include a flow section that is usually specified to match the user's process line.
Specifications
Accuracy
- Accuracy Referenced to 21° C (70° F): ± [1 % of Reading + (0.5 % + 0.02 %/°C of Full Scale)]
Approvals & Certifications
- ATEX (For use in Hazardous Area Locations, Ta = 0° C to 50° C, IP66, Ex d IIB + H₂ T4 Gb/Ex T IIIC T135° C Db or Ex d IIB + H₂ T3 Gb/Ex T IIIC T200° C Db or Ex d IIB + H₂ T2 Gb/Ex T IIIC T300° C Db, SIRA 12-ATEX-1302)
- CSA [C-US] (For use in Hazardous Area Locations, Class I, Div. 1, Groups B, C, D, Class II Groups E, F, G Class III: Enclosure Typical 4X, Class I Zone I, AEx d IIB + H₂ IP66, Ex d IIB + H₂ IP66, T2 or T3 or T4 as Marked, Ta = 0° C to 50° C)
- IECEx (For use in Hazardous Area Locations, T2 or T3 or T4 as Marked, Ta = 0° C to 50° C, Ex d IIB + H₂ T2 to T4 Gb IP66, Ex TD A21 IP66, T135° C to T300° C, IECEx CSA 11.0014)
- KOSHA (For use in Hazardous Area Locations, Class I Groups B, C, D, Class II Groups E, F, G Class III, Enclosure Typical 4X, Class I Zone I, AEx d IIB=H₂ IP66, Ex d IIB + H₂ T2 to T4 Gb IP66, Ex TD A21 IP66)
Communication
- Signal Interface: HART
- Signal Interface: PROFIBUS DP
- Signal Interface: RS-232
- Signal Interface: RS-485 Modbus RTU Embedded
Display
- LCD (Flow Rate, Flow Total, Gas Temperature)
Environmental Protection
- IP66
- Typical 4X
Flange Size - 3” (DN 80)
- Unrated
Flange Size - 4” (DN 100)
- Unrated
Input
- Input Power Requirement: 115 Vac at 50/60 Hz
- Input Power Requirement: 230 Vac at 50/60 Hz
- Input Power Requirement: 24 Vdc at 250 mA
Length
- 6 to 14” (152.4 to 355.6 mm)
NACE & NIST
- NIST
NPT Connection
- 1” NPT Male
- 1/2” NPT Male
- 1/4” NPT Male
- 1-1/2” NPT Male
- 1-1/4” NPT Male
- 2” NPT Male
- 2-1/2” NPT Male
- 3/4” NPT Male
- 3/8” NPT Male
Output
- Linear Signal Output: 0-5 Vdc (Flow & Temperature)
- Linear Signal Output: 4-20 mA (Flow & Temperature)
Power Requirement
- Flow Transmitter Power Requirement: 5 W, Max.
- RAM Back-Up: Lithium Battery
Pressure Rating
- psi: 500 (kPa: 3,447, bar: 34.47) - Max.
Repeatability
- ± 0.2 % of Full Scale
Response Time
- Sensor: 1 second to 63 % of Final Value
Sensor, Probe Material
- Sensor: 316 Stainless Steel Sheath
- Sensor: Hastelloy C Sheath
Sensor, Probe Type
- Sensor: RTD
Temperature Coefficient
- Gas Temperature Coefficient (GTC): 0.02 % of Full Scale/°C
Temperature Range
- Electronics PCB: -40° to 70° C (-40° to 158° F)
- Environmental: -40° to 60° C (-40° to 140° F)
- Gas: -40° to 200° C (-40° to 392° F)
- Standard Temperature & Pressure (STP): 21° C (70° F) & 29.92” Hg (Air .075 lbs/ft²)
Turndown
- 100:1 at 1,500 SFPM / 7.6 NMPS Min. Full Scale
Wetted Materials
- 316 Stainless Steel
- Hastelloy
