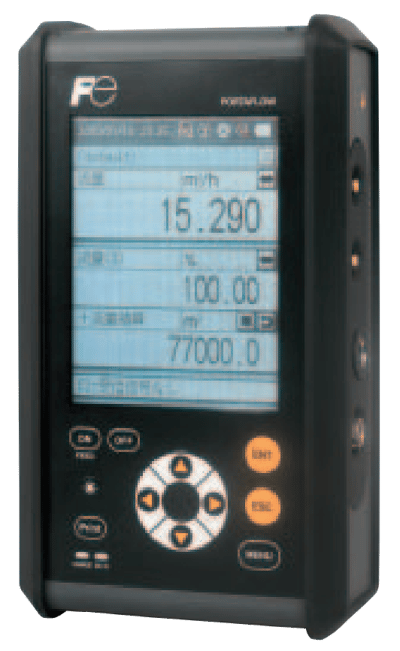

PORTAFLOW-C is a portable type ultrasonic flowmeter utilizing the transit time measuring method, using a clamp-on type detector.
It is a compact and lightweight instrument incorporating the latest electronics and digital signal processing technologies, realizing high performance and easy operation.
Features- Compact And Lightweight
- Battery Operation
- Full Variety Of Detectors
- High Accuracy And High-Speed Response
- Improved Anti-Bubble Characteristic
- Excellent Performance And Easy Operation
- Large Capacity Storage By sd Memory Card
- Serial Communication
- Heat Quantity (Calorie) Measurement
- Graphic Printer Connection
- Flow Velocity Profile Measurement
Specifications
Accuracy
- ± (0.01 to 0.03 m/sec)
- ± 1 to 1.5 % of Rate
Ambient Temperature Range
- -10° to 45° C (14° to 113° F) (with Printer)
- -10° to 55° C (14° to 131° F) (without Printer)
Battery Life
- Recharging Time: Approximately 3 Hours
Communication
- Serial - Transmission Speed: 500 Kbps
- Serial: USB
Consumption
- Power: 3 to 16 W
Damping Adjustment
- 0 to 100 seconds (Every 0.1 second) Configurable for Analog Output & Velocity / Flow Rate Display
Diameter
- Pipe Inner Diameter: 0.5 to 236.2” (13 to 6,000 mm)
Display
- LCD Semi-transmissive Color Graphic Display 240 x 320 (with Back Light)
- LED Display (Status Display when Using AC Power Adapter, DC IN (Green): Power Supply Status, CHARGE (Red): Battery Charging Underway)
Distance
- Serial Communication (Transmission Distance): 9.8 feet (3 metres) - Max.
Enclosure, Body Material
- Plastic
Environmental Protection
- IP64 (without Printer)
Flow Capacity
- Flow Velocity: 0 to 32 m/sec
Humidity
- Ambient: 90 % Relative Humidity or Less
Input
- Analog: 1-5 Vdc, One Point
- Analog: 4-20 mA DC, One Point
Load Resistance
- Analog Output: 600 ohms
Materials of Construction
- Lining Material: Mortar
- Lining Material: Pyrex Glass
- Lining Material: Rubber
- Lining Material: Tar Epoxy
- Lining Material: Teflon
- Piping Material: Acrylic
- Piping Material: Aluminum
- Piping Material: Carbon Steel
- Piping Material: Cast Iron
- Piping Material: Copper
- Piping Material: Fibre-Reinforced Plastic (FRP)
- Piping Material: PVC
- Piping Material: Stainless Steel
Measuring Range
- 0 to 32 m/sec
Operating Time
- Power Supply: Approximately 12 Hours (without Printer, Back Light OFF, Output Current Not used & at Normal Ambient Temperature 20° C (68° F)
Output
- Analog: 4-20 mA DC, One Point
Power
- Power Adapter: 70 VA or Less
- Power Adapter: 90-264 Vac at 50/60 Hz
Power Requirement
- Lithium Button Battery (5,000 mAh)
Process Temperature
- Fluid: -40° to 200° C (-40° to 392° F)
Resistance
- Analog Input: 200 ohms or Less
Response Time
- 1 second
Temperature Range
- Power Supply (Recharging): 0° to 40° C (32° to 104° F)
