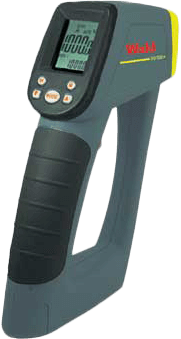

DHS235XEL Hand-Held Infrared Thermometer

Brand: Palmer Wahl Instruments, Inc
Request Information
Favorite

Wahl's Brand New Hand-Held Infrared Thermometers!

America's most innovative thermometer company.

Palmer Wahl, manufactures precision temperature instruments.

Wahl was the first to bring the industry a portable, non-contact, handheld infrared thermometer at an affordable price point.

Today, Wahl is pleased to introduce this new model to our famous line of Heat Spy® Infrared Thermometers.

These incredibly accurate and robust Heat Spy's will help you diagnose any problem, and prevent costly equipment downtime.

The variety of features enable you to select the most appropriate Heat Spy® for your application.
Features
  • Extra Long Distance (50:1)
  • Extra High Temperature (-58° to 2732°F)
  • 10 point memory log that can save current temperature
  • MAX/MIN/AVG/PT
  • Electronic Trigger Lock which allows for continuous readings

Specifications

Brand

Temperature Range

  • -58° to 2732° F
  • -50° to 1500° C

Distance to Spot Ratio

  • 50:1

Spectral Range

  • 8 to 14 µm

Emissivity

  • Adjustable 0.10 to 1.00

Accuracy

  • ± 5.4° F (± 3° C) from -58° to -4° F (-50° to -20° C)
  • ± 3.6° F (± 2° C) from -4° to 212° F (-20° to 100° C)
  • ± 2 % above 212° F (100° C)

Repeatability

  • ± 2° F (± 1° C)

Resolution

  • 0.1° F (0.1° C)

Response Time

  • 500 milliseconds

Operating Temperature

  • 32° to 122° F (0° to 50° C)
  • 10 - 90 % Relative Humidity

Storage Temperature

  • 14° to 140° F (-10° to 60° C)

LCD Backlight

  • Yes

Dual Display

  • Yes

°F & °C Selectable

  • Yes

Laser Sight Switchable

  • User Selectable, Class II Laser, less than 1 mW

Auto Power Off

  • Automatically after approx. 30 seconds

Maximum / Minimum/Avg/∆T

  • Yes

Auto Measuring

  • Yes

Audible Alarm

  • Yes

10 Point Memory

  • Yes

Electronic Trigger Lock

  • Yes

Tripod Mount

  • Yes

USB Data Output

  • Yes

Type K Thermocouple

  • Yes

Operating Software

  • N/A

Power Supply

  • 9 V Battery

Battery Life with Laser Off

  • 15 hours for continuous operation

Dimensions

  • 7.9 x 5.0 x 1.9” (200 x 127 x 47 mm)

Weight with Battery

  • 12.7 oz. (360 g)

Included Accessories

  • User Manual, 9 V Battery, Carrying Case, Wrist Strap & Software

  • Quality/Non-Destructive Testing
  • Electrical Troubleshooting
  • Manufacturing Process Control
  • Diesel/Fleet Maintenance
  • Plant/Facilities Maintenance
  • HVAC/Refrigeration
  • Automotive Repair and Diagnostics

Documentation

Data Sheet

Manual
