Bronkhorst Flow Meter, LIQUI-FLOW mini
Images are representations only.

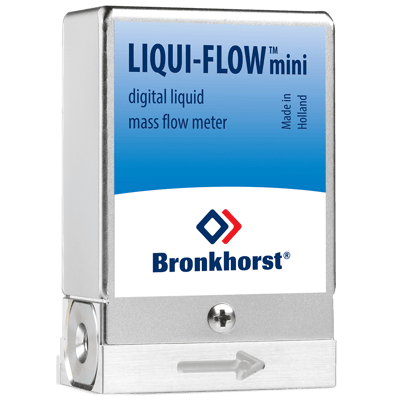

LIQUI-FlOW mini Flow Meter

Brand: Bronkhorst
Request Information
Favorite

Bronkhorst designed the LIQUI-FLOW mini Mass Flow Meter (MFM) for liquids according to the micro fluidic concept.

This very compact instrument measures ultra low flow ranges from 1.5 to 75 mg/h (0.025 to 1.25 μl/min) up to 12 to 600 mg/h, based on water. The straight, duplex steel sensor tube (W1.4462) has an internal volume of less than 1 mm³ and operates on the thermal measuring principle.

Due to its high pressure rating (up to 1,000 bar; higher on request) the MFM is suited to HPLC systems. The instrument is equipped with a microprocessor-based printed circuit board, offering high accuracy and excellent temperature stability.

The RJ45 connection is used for power supply and for both Analog and digital (RS232/RS485) communication.
Features
  • Compact assembly ensures space efficiency
  • Very small internal sensor volume (0.88 mm³) for fast analysis
  • High accuracy and repeatability
  • Insensitive to mounting position
  • High pressure rating (PN1000)
  • Easy cleaning due virtually no dead volume
  • Straight sensor tube reduces risk of clogging

Specifications

Brand

Environmental Protection

  • IP40

Tube Connection

  • 1/16” O.D. Tube

UNF/UNC Connection

  • 10-32 UNF Male

Documentation

Data Sheets
