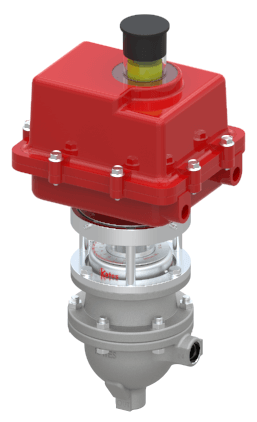

Kates I/Q Valve

Brand: Custom Valve Concepts

The Automated Kates Flow Control Valve will improve the performance of almost any control loop.

Regardless of pressure fluctuations, the Kates will control the flow rate proportional to the 4-20 mA input.

Flow output is perfectly linear to signal input. By internally maintaining a constant differential pressure across a metered orifice, flow control is maintained to within 1½% of set point.

A variety of electric and pneumatic actuation control signals are available.

Specifications

Materials of Construction

  • 316 Stainless Steel

Seals

  • PTFE
  • Buna
  • Viton

Manimum Pressire

  • 5000 psi
  • 2500# ANSI

Maximum Temperature

  • 400° F

Accuracy

  • ± 1-1/2 % of Set Point

Repeatability

  • ± 1/2 % of Set Point

Turndown Ratio

  • 25:1

Connections

  • FNPT
  • ANSI Flanged

  • Mechanical Seal Lubrication
  • Continuous Casting
  • Instrumentation Purge
  • Hydrocracking
  • Dewaxing
  • Desulphurization
  • Heat Exchangers
  • Aircraft De-icing
  • Sodium Hypochlorite Injection
  • Header Systems
  • Reverse Osmosis Systems
  • High Purity Silicon Chip Manufacturing
  • Rotating Seals
  • Ratio Blending
  • Nitrogen Blanketing
  • Dynamometers
