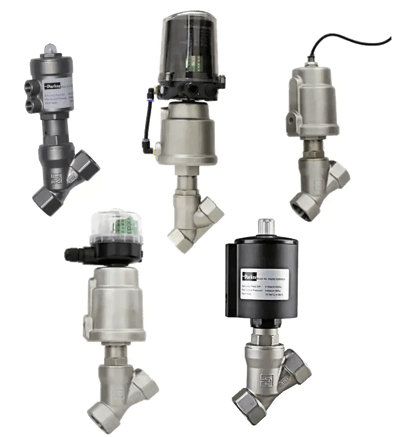

PA Series Angle Seat Valves-1.png
Images are representations only.

PA Series Angle Seat Valves

Brand: Parker - Fluid Control Division
Request Information
Favorite

2-way pneumatically-actuated Angle Seat Valves (ASV) available in on/off and proportional control models. Optional position feedback technologies are also available.

Parker 2-Way, Angle Seat Valves, Normally Closed and Normally Open, can handle a variety of media from air, inert gasses, water, steam, and corrosive solutions up to temperatures of 356°F.

They have durable 304 or 316L stainless steel bodies with aluminum or stainless steel actuator housing options, offer over seat or under seat configurations for all flow applications, and are compliant with Pressure Equipment Directive 97/23/EC.

They are available in On/Off configuration with either optional Limit Switch Box or Proximity Sensor and also Proportional Control.
Features
  • Compact Design
  • High Flow Rates up to 81.7 Cᵥ
  • Visual Position Indicator
  • Optional Limit Switch Box or Proximity Sensor for direct and remote valve position indication
  • Proportional Control Valves for control of Pressure, Temperature, Flow, and Liquid level
  • Stainless Steel Actuator Housing for Exceptional Durability
  • Mountable in Any Position
  • ANSI Class VI for Tight Shut-Off and Long Service Life
  • All valves are compliant with Pressure Equipment Directive 97/23/EC
  • On/Off Valves with no accessories comply with European Atmosphere Explosive Directive 2014/34/EU in accordance with Annex VIII §3 specific to Non-Electrical Equipment for Use Within Potentially Explosive Environments - Zone 2/22

Displaying prices & availability for Ohio, United States in USD. Change location.

Models matching criteria: 152
PA10S1N3R040S-LS
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
PA10S1N3R040S-PS
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
PA10S1N3R050S-PS
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
PA10S1N3S050A
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
PA10S1N3S050A-LS
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
PA10SAN3R050S
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
PA10SAN3R050S-LS
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
PA15S1N4R050S
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
PA15S1N4R050S-PS
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
PA15SAN4R050S-PS
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
PA20S1N5R050S-PS
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
PA20S1N5S050A
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
PA20S1N5S050A-PS
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
PA20SAN5R050S
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
PA20SAN5R063S-PR
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
PA20SAN5S050A-PS
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
PA25S3N6R063S
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
PA25SAN6R063S-LS
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
PA25SAN6R063S-PS
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
PA25SAN6R080A-PR
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
PA25SAN6R080S-PR
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
PA25SAN6S063A-LS
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
PA25SAN6S063A-PS
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
PA32SAN7R080S-LS
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
PA32SAN7R100S-PR
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
PA40S1N8S063A
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
PA40SAN8R080S
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
PA40SAN8R080S-LS
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
PA40SAN8R100S-LS
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
PA40SAN8S080A-LS
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
PA40SAN8S100A
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
PA40SAN8S100A-LS
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
PA50S1N9R063S
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
PA50S1N9R080S
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
PA50S1N9R080S-PS
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
PA50S1N9R100S
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
PA50S1N9R100S-PS
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
PA50S1N9S080A-PS
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
PA50SAN9R100A-PR
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
PA65S1NTS100A-PS
PA Series Angle Seat Valves
Call for Pricing & Availablility
Does not ship to OH, United States
Show More Models (112)

View Details

Specifications

Brand

Technology

  • Fluid & Gas Handling, Pneumatics, Process Control

Product Style

  • Pneumatically Actuated

Configuration

  • Normally Closed, Normally Open

Maximum Steam Pressure

  • Up to 130 psi

Minimum Pilot Pressure

  • 43.5 to 94.3 psi

Connection Type

  • NPT

Orifice Size

  • 0.51" to 2.56"

Actuation Type

  • Air Pilot

Maximum Operating Temperature

  • 140°F

Input Supply Voltage

  • 12 - 24 VDC for Proximity Sensor option
  • 24 VDC for Proportional Control Valve
  • 12 - 48 VDC for Limit Switch Box option

Materials of Construction

  • 304 Stainless Steel (Actuator Housing), Aluminum (Actuator Housing)

Body Material

  • 304 Stainless Steel, 316L Stainless Steel

Product Type

  • Angle Valve

Function

  • 2-Way

Maximum Operating Pressure

  • Up to 232 psi

Maximum Pilot Pressure

  • Up to 145 psi

Flow Coefficient

  • 5.5 to 81.7 Cᵥ

Connection Size

  • ⅜" to 2½"

For Fluid Type

  • Air, Inert Gas, Liquids, Steam

Actuator Size

  • 32 to 100 mm

Maximum Fluid Temperature

  • 356°F

Specifications Met

  • European Pressure Equipment Directive 2014/68/EU in accordance with Annex II, Category II, Group 2, Module A1

Signal Input

  • 0/4 - 20 mA for Proportional Control Valve

Seal Material

  • PTFE

  • Food and Beverage Processing
  • Water Technology & Treatment
  • Textile Industry
  • Cooling Systems on Injection Molding Machines, Industrial Welders, and Machining Centers
  • Pharmaceutical & Cosmetic Industry
  • Chemical Process Technology
  • Refrigeration & Cooling Heat Exchangers
  • Sterilizers Steam Supply
  • Water Conveyance: Mining, Cement / Concrete Systems, Pulp & Paper
  • General Industrial Applications of Aggressive Fluids
  • Industrial Laundry Equipment
  • Industrial Air Dryers
  • Markets:
    • Commercial Equipment
    • Food & Beverage Processing
    • Power Generation
    • Petro-Chemical
    • Oil & Gas
    • Industrial Process Control
