Pneumatic Solenoid ISO Valve - DX ISOMAX 15407-1 Series

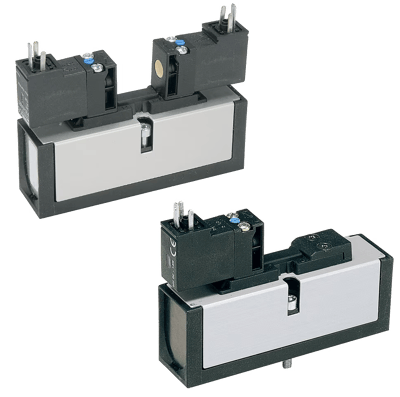

The DX ISOMAX 15407 series valve is an internal/external air piloted subbase style valve.

The ISOMAX size 01 and 02 valves are non-plugin only and can be mounted on a stand alone subbase or a multiple valve manifold. 1/8 or 1/4 NPT/BSPP ports are available.



Each coil is wired individually with a 30 mm 3 pin DIN connector. The DX ISOMAX series valves can be field converted from internal to external pilot supply by moving the gaskets located under the solenoid operators.

Internal pilot operation means the supply pressure on the #1 port is directed to the end of the valve where the solenoid operator, when actuated, allows the supply pressure to pass, which is then applied to the piston to shift the spool.

External pilot is when the valve gets its "internal" pressure from an "external pilot port" instead of the #1 port. The ISOMAX valves use a ceramic seat for low friction, fast response, and resistance to contamination.
