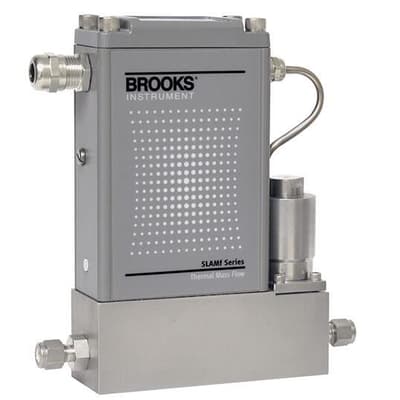

SLAMf Series Elastomer Sealed Thermal Mass Flow Controller/Meter

Brand: Brooks Instrument

Whether it’s dust, moisture, temperature extremes or wash-down requirements, the SLAMf Series elastomer sealed thermal mass flow controllers and meters deliver the precise accuracy and long-term stability of our proven SLA5800 family of meters and controllers.

A specially engineered NEMA4X/IP66 enclosure protects our advanced digital electronics and ensures stable, accurate measurement and control of your process-critical gas mass flows.
Features
  • ISO/IEC 17025 accredited
  • SLA Series Biotech MFC offers two options packages with features created specifically to improve bioprocessing performance
  • NEMA4X / IP66 rated hardened enclosure
  • Wide range of full scale flows - from 0.003 up to 2,500 lpm (36,000 lpm for meters)
  • Suitable for a broad range of temperature and pressure conditions
  • Industry-leading thermal flow measurement sensor technology delivers excellent accuracy
  • Broad array of available communication options now includes EtherNetIP™ and PROFINET which feature a web-based interface that lets you easily configure network settings
  • Programmable multi-gas/multi-range capabilities
  • Advanced self-test routines and an independent diagnostic service port lets users troubleshoot or change flow conditions without removing the MFC from service
Benefits
  • Hardened device housing ensures process accuracy and control in harsh conditions
  • Proprietary thermal sensing technology delivers superior signal to noise ratio at low set points
  • Long-term sensor stability reduces maintenance and periodic recalibration requirements
  • Choose one device, program up to six different gas calibrations
  • Enhanced valve shut-off, wide turndown, certifications and approvals (USP Class VI/ADI-free) for all elastomeric material in the gas stream (wetted path), including valve seats and o-rings, are available with the SLA Series Biotech MFC
  • User-accessible service port simplifies installation, troubleshooting and diagnostic tasks
  • Excellent accuracy backed by superior metrology systems and calibration based on global standards
  • EtherNet/IP™ and PROFINET permits multiple, additional diagnostics beyond those provided by the mass flow controller alone, giving users rich, real-time system information
  • ISO/IEC 17025 certification and calibration available with flow accuracy of ±0.6% of SP
  • Traceable calibrations to meet industry standards and regulatory requirements

Specifications

Approvals & Certifications

  • cRUs
  • cULus
  • ATEX
  • IECEx
  • KCC
  • CE
  • KOSHA
  • RoHS

BSP Connection

  • 1” BSP
  • 1/2” BSP
  • 1/4” BSP

Environmental Protection

  • IP66

Flange Size - 1-1/2” (DN 40)

  • 1-1/2” (DN 40) - 150# ANSI
  • 1-1/2” (DN 40) - 300# ANSI
  • 1-1/2” (DN 40) - PN 40 (DIN)

Flange Size - 1” (DN 25)

  • 1” (DN 25) - 150# ANSI
  • 1” (DN 25) - 300# ANSI
  • 1” (DN 25) - PN 40 (DIN)

Flange Size - 1/2” (DN 15)

  • 1/2” (DN 15) - 150# ANSI
  • 1/2” (DN 15) - 300# ANSI
  • 1/2” (DN 15) - PN 40 (DIN)

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 150# ANSI

Flange Size - 3-1/2” (DN 90)

  • 3-1/2” (DN 90) - 300# ANSI

Flange Size - 3” (DN 80)

  • 3” (DN 80) - 150#(ANSI)
  • 3” (DN 80) - 600#(ANSI)
  • 3” (DN 80) - PN 100 (DIN)
  • 3” (DN 80) - PN 40 (DIN)
  • 3” (DN 80) - PN 64 (DIN)

Flange Size - 4” (DN 100)

  • 4” (DN 100) - 150# ANSI
  • 4” (DN 100) - 300# ANSI
  • 4” (DN 100) - 600# ANSI
  • 4” (DN 100) - PN 16 (DIN)
  • 4” (DN 100) - PN 40 (DIN)
  • 4” (DN 100) - PN 64 (DIN)

Flange Size - 6” (DN 150)

  • 6” (DN 150) - 150# ANSI
  • 6” (DN 150) - 300# ANSI
  • 6” (DN 150) - 600# ANSI
  • 6” (DN 150) - PN 16 (DIN)
  • 6” (DN 150) - PN 64 (DIN)

Flange Size - 8” (DN 200)

  • 8” (DN 200) - 150# ANSI
  • 8” (DN 200) - 300# ANSI
  • 8” (DN 200) - PN 10 (DIN)
  • 8” (DN 200) - PN 16 (DIN)
  • 8” (DN 200) - PN 25 (DIN)
  • 8” (DN 200) - PN 64 (DIN)

NPT Connection

  • 1” NPT Female
  • 1/2” NPT Female
  • 1/4” NPT
  • 1-1/2” NPT Female
  • 2” NPT

SAE Connection

  • 1-1/16”-12 SAE, MS
  • 1-5/16”-12 SAE

Tube Connection

  • 1/2” Compression Fitting
  • 1/2” Tube Compression w/ Filter
  • 1/4” Tube
  • 1/8” Compression Fitting
  • 1/8” Tube
  • 1” Tube Compression
  • 10 mm Tube Compression w/ Filter
  • 12 mm Tube Compression
  • 3 mm Tube Compression
  • 3/4” Tube Compression
  • 3/8” Compression Fitting
  • 6 mm Tube Compression w/ Filter

UNF/UNC Connection

  • 9/16”-18 UNF Male

VCR / VCO Connection

  • 1/2” VCR
  • 1/4” VCO
  • 1/4” VCR
  • 1” VCO
  • 1” VCR
  • 3/4” VCR Female
  • 3/4” VCO
  • 3/8”-1/2” VCO
  • 3/8”-1/2” VCR

Full Scale Flow Range

  • 0.003 - 2,500 slpm
  • 18– 2,160 m³/hr

Flow Accuracy

  • ±0.6% of S.P. (20-100% FS), ±0.12% FS (<20% FS)
  • ±0.6% of FS
  • ±0.9% of S.P. (20-100% FS), ±0.18% of F.S. (<20% FS)
  • ±1.0% of FS

Repeatability & Reproducibility

  • 0.20% S.P
  • ±0.25% SP

Operating Temperature

  • -14° to 65° C (7° to 149° F)

Valve Type

  • Normally Closed, Normally Open, Meter

Wetted Material

  • 316, 316/316L Stainless Steel, High Alloy, Stainless Steel, Viton® Fluoroelastomers, Buna-N, Kalrez®, Teflon®/ Kalrez®, and EPDM

Communication

  • RS485
  • Profibus
  • DeviceNet
  • EtherNet/IPTM & PROFINET

  • Life Sciences
  • Chemical & Petrochemical Pilot Plants
  • Blanketing in Food Processing
