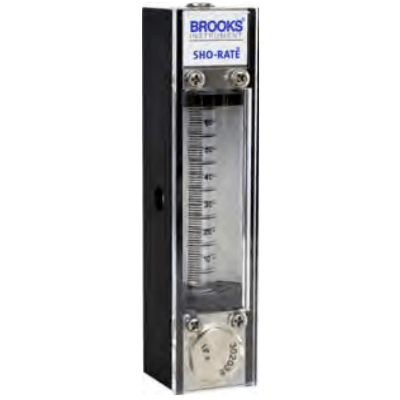

Sho-Rate Model 1350G/1355G Low Flow Glass Tube Flowmeter
Brand: Brooks Instrument
The Brooks® Sho-RateTM Series glass tube variable area flow meter has been the industry standard glass tube variable area meter for decades.
This glass tube meter is ideal for a variety of gas and liquid applications. These meters are particularly suited for purge applications.
The base configuration uses a borosilicate glass tube installed in an aluminum frame with 316SS end blocks, adaptors, and valve.
Additional material options, valve options, and flow controllers are available to provide the appropriate configuration for a wide variety of applications.
Sho-Rate™ 1350/1355 flow meters deliver up to 3% accuracy and 0.25% repeatability depending on the model.
Features- Standard direct read scales on tube for all fluids and fluid conditions (user selected)
- Standard millimeter scales with flow curves for all fluids and fluid conditions (user selected)
- Scale length (approximate) 65 mm, 150 mm
- Magnifier built into front shield
- Flowmeter options:
- Multiple fitting adapters for all world areas
- No valve, cartridge valve and precision control valve
- Inlet & outlet valves
- Integral flow controller, upstream & downstream
- Multiple connection fittings to fit all applications
- Multiple approval certifications for world wide usage
Specifications
Brand
Materials of Construction
- 316 Stainless Steel
- Aluminum
- Borosilicate Glass
- Clear Polycarbonate, Milk White Polycarbonate
- End Block Options: Brass
- Teflon
Seal Material
- Viton® Fluoroelastomers
- Buna
- Kalrez Perfluoroelastomers
- Teflon
Valve Material
- Stainless Steel
Process Connection
- 1/8” NPT (w/wo Locknuts)
- 1/4” NPT (w/wo Locknuts)
- 1/4” RC (w/wo Locknuts)
- 3/8” RC (w/wo Locknuts)
- 1/4” VCR®
- 1/4” ID Hose
- Swagelok® Converters
- 1/4” Compression (with or without Locknuts)
- 1/8” Compression (with or without Locknuts)
- 6 mm Compression (with or without Locknuts)
Approvals & Certifications
- ICC
- CRN
- CE
- ATEX
- FM
- PED (97/23/EC)
- REACH
- RoHS
Operating Pressure
- psi: 200 (kPa: 1,380, bar: 13.8)
Operating Temperature
- 1° to 121° C (33° to 250° F)
Repeatability
- 0.25 % of Full Scale
Connection Material
- Stainless Steel
Float Material
- Glass, Sapphire, Stainless Steel, Carboloy®, Tantalum
Accuracy
- ± 3 % at Reference Condition - 1355G
- ± 5 % at Reference Conditions - 1350 G
Meter Size
- 2", 6"
- Pharmaceutical Production
- Research
- Chemical Manufacturing
- Analytical Instrumentation
- Water Treatment and Distribution Systems
