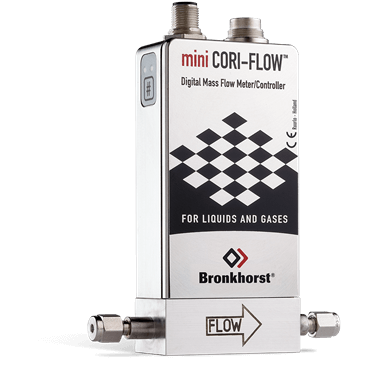

CORI-FLOW Compact Coriolis Mass Flow Meter & Controller
Brand: Bronkhorst.png)
CORI-FLOW series by Bronkhorst are precise and compact Mass Flow Meters and Controllers, based on the Coriolis measuring principle.
Designed to cover the needs of the low flow market, there are 3 models to overlap flow ranges from 5 g/h up to 30 kg/h (full scale values), each offering “multi-range” functionality: factory calibrated ranges can be rescaled by the user, maintaining the original accuracy specs.
The instruments are equipped with a robust IP65 weatherproof housing and are available with optional ATEX approval for use in Zone 2 hazardous areas.
Features- Direct mass flow measurement, independent of fluid properties
- High accuracy, excellent repeatability
- Multi-range: easy on site re-ranging via digital interface (effective turndown 2000:1, typical M13)
- IP65 design, optional ATEX approval Category 3, Zone 2
- Metal-sealed construction
- Optional bi-directional measurement
- Additional density and temperature outputs
- Standard Analog 0-5(10) Vdc and 0(4)-20 mA and digital communication
- Optional fieldbus interface (devicenet, PROFIBUS DP, Modbus-RTU or FLOW-BUS)
- Alarm and (batch) counter functions
Specifications
Brand
Approvals & Certifications
- ATEX Category 3, Zone 2
Environmental Protection
- IP65
Tube Connection
- 1/2” O.D. Tube
- 1/4” O.D. Tube
- 1/4” Tube
