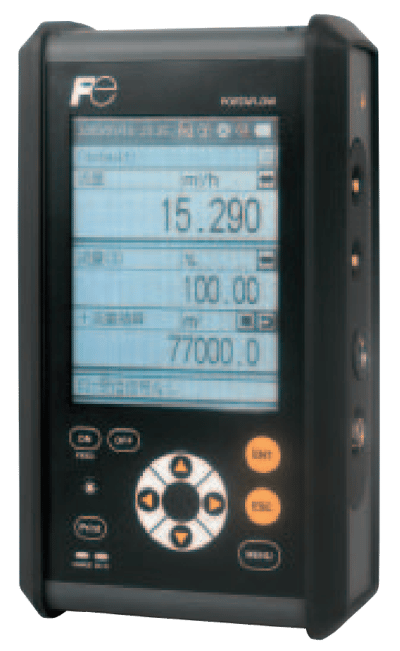

FSD Portable Type Ultrasonic Flowmeter

Part Number: FSD Brand: Fuji Electric Co, Ltd
Price
Request a Quote
Stock
Call for Pricing & Availablility

PORTAFLOW-C is a portable type ultrasonic flowmeter utilizing the transit time measuring method, using a clampon type detector.

It is a compact and lightweight instrument incorporating the latest electronics and digital signal processing technologies, realizing high performance and easy operation.
Features
  • Compact and lightweight
  • Battery operation
  • Full variety of detectors
  • High accuracy and high-speed response
  • Improved anti-bubble characteristic
  • Excellent performance and easy operation
  • Large capacity storage by SD memory card
  • Serial communication

Specifications

Ambient Temperature Range

  • -20° to 80° C (-4° to 176° F)

Diameter

  • Pipe: 1.57 to 39.37” (40 to 1,000 mm)

Enclosure, Body Material

  • PBT

Environmental Protection

  • IP67 (with Waterproof BNC Connector Provided)

Flow Capacity

  • Air Bubble Quantity: 0.02 to 15 % Volume (Velocity is 1 m/sec)
  • Flow Velocity: 1.77 to 7.77 m/sec, Max.

Flow Rate

  • 33.6 to 4,902 m³/hour, Max.

Humidity

  • Ambient: 100 % Relative Humidity

Materials of Construction

  • Guide Frame: Aluminum Alloy
  • Lining Material: Mortar
  • Lining Material: Pyrex Glass
  • Lining Material: Rubber
  • Lining Material: Tar Epoxy
  • Lining Material: Teflon
  • Mounting Belt, Pipe: Stainless Steel
  • Mounting Belt: Plastic Cloth Belt
  • Pipe: Acrylic
  • Pipe: Aluminum
  • Pipe: Carbon Steel
  • Pipe: Cast Iron
  • Pipe: Copper
  • Pipe: FRP
  • Pipe: PVC

Measuring Range

  • 0 to 32 m/sec

Process Temperature

  • Fluid: -40° to 100° C (-40° to 212° F) - FSDP2
  • Fluid: -40° to 80° C (-40° to 176° F) - (FSDP0, FSDP1)

System Requirements

  • Windows® 2000/XP/7/Vista Operating System
