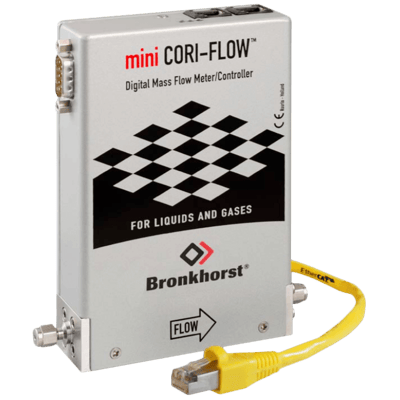

Mini CORI-FLOW ML120 Flow Meter/Controller

Brand: Bronkhorst

Bronkhorst designed the new ML120 to offer highest performance at the world’s lowest flow rates to be measured with a Coriolis instrument: from 0.05 to 5 g/hr up to 2 to 200 g/hr.

The ML120, comprising both a Mass Flow Meter (MFM) and a Mass Flow Controller (MFC), feature smallest physical dimensions and lowest internal volume. The new Coriolis sensor shows little to no variance over a long period of operation, thus reducing the system downtime.

The MFC contains a microprocessor based pc-board with signal and fieldbus conversion and a PID controller for mass flow control by means of the integrated piezoelectric control valve.

The flow controller only requires (less than) 1 second settling time. This makes the Coriolis MFC an ideal device for fast, repetitive dosing and filling processes for precursors, additives, solvents, etc.
Features
  • Direct mass flow measurement, independent of fluid properties
  • Fast response
  • High accuracy
  • Additional density and temperature outputs
  • Bi-directional measurement

Specifications

Communication

  • PROFINET

Environmental Protection

  • IP40

Tube Connection

  • 1/16” O.D. Tube
  • 1/8” O.D. Tube
  • 3 mm Tube
