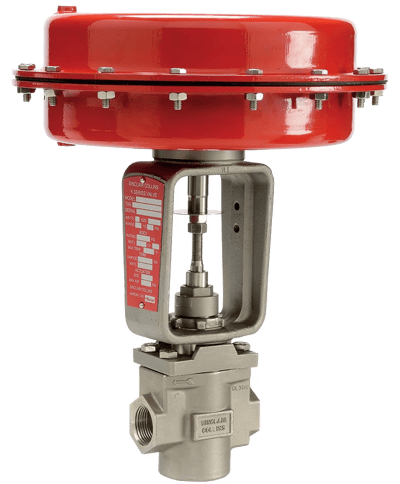

Parker 2-Way Sinclair Collins K Series, Normally Open, ¾" Process Control Valves

Brand: Parker - Fluid Control Division

Parker 2-Way Sinclair Collins K Series, Normally Open, ¾" Valves are ideally suited for applications requiring higher media temperatures.

Constructed of highly durable bronze, these high performance valves are fully tested prior to shipping.

Parker 2-Way Sinclair Collins K Series, Normally Open, ¾" Process Control Valves are ideally suited for a variety of applications requiring the control of steam, gas, liquids or chemicals.

Constructed of highly durable bronze or 316 stainless steel, the K Series valves provide operating pressures of 250 psi and can handle very high fluid temperatures.
Features
  • Reduced Valve Height
  • Serviceability in the Field Without Removal from the Installation
  • Field Reversible from “Air-to-Open” to “Air-to-Close”
  • Ease of Maintenance and Uniform Thrust Throughout the Valve Stroke
  • Longer Service Life
  • Rugged Construction
  • Adjustability of Operating Pressures

Specifications

Actuation

  • Pneumatic Operated

Actuator Size

  • 37 or 64 (Square inches)

Body Material

  • Bronze

Flow Characteristics

  • Linear or Equal %

Flow Factor 1

  • 8 Cᵥ

Function

  • Normally Open

Maximum Fluid Temperature

  • 400°F

Maximum Pilot Air Pressure

  • 35 psi

Maximum Pressure Differential

  • 250 psi

Media

  • Valves for Steam, Air, Neutral Gasses & Liquids

Minimum Fluid Temperature

  • -40°F

Number of Ports

  • 2

Orifice 1 Size

  • 0.84"

Port Size

  • ¾”

Port Type

  • Female NPT

Seal Material

  • Stainless Steel

Series

  • Sinclair Collins K Series

Valve Type

  • 2-Way

Weight

  • 19 to 27 Lbs

  • Chemical Process Technology
  • Tire Press Temperature Control
  • Water Technology & Treatment
  • Cooling Systems and Exchange Heaters
  • Industrial Air Dryers
  • Pulp and Paper Water Applications
  • Mining, Cement, Concrete Systems Water Applications
  • Industrial Handling of Aggressive Fluids
  • Industrial Food and Beverage Processing
  • Markets:
    • Tire Manufacturing
    • Industrial Automation
    • Process Control
    • Food Processing
