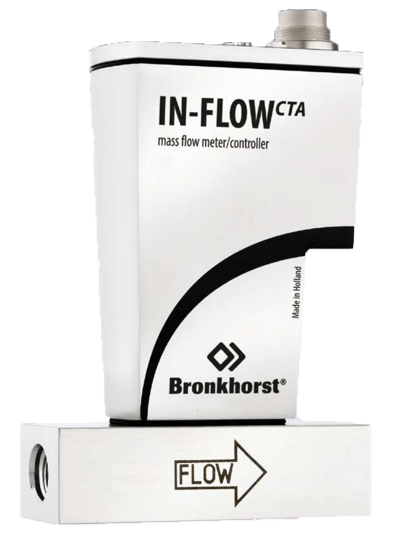

IN-FlOW CTA Mass Flow Meter & Controller

The Mass Flow Meters and Controllers of the IN-FLOW CTA series are of rugged design (IP65) for use in pilot and production plants in industrial environments. The instruments operate on the principle of direct thermal mass flow measurement (no by-pass) and have no moving parts and no obstructions to the flow path.

These features make IN-FLOW CTA Mass Flow Meters ideal for low pressure drop applications and for the use on wet or dirty gases. Another advantage of using this type of sensor is that the instruments measure direct mass flow, without the need of temperature and pressure correction.

Mass Flow Meters can be supplied in ranges starting from 10-200 mlₙ/min to 50-5000 lₙ/min Air-equivalent. Mass Flow Control loops can be offered, up to 4-200 lₙ/min Air-equivalent as flow meter with integrated control valve and up to 5000 lₙ/min with separate control valve.
