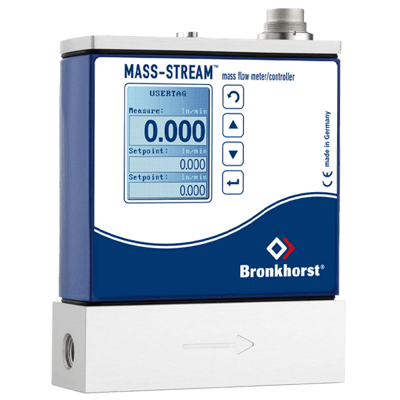

MASS-STREAM Flow Meter & Controller
Brand: Bronkhorst.png)
The digital MASS-STREAM mass flow meters and controllers are operated with a main-board with all functions for the flow measurement and control.
The instruments can be supplied with commonly used digital or Analog input/output signals and when ordering a digital instrument please forward the required pre-settings. Along with the standard RS 232 interface the additional interfaces DeviceNet, PROFIBUS DP, Modbus-RTU and FLOW-BUS are also available.
The digital MASS-STREAM model series is characterized by a high degree of signal integrity and, as an option, up to 8 calibration curves of different gases and process conditions can be memorized in the instrument.
Features- Direct inline measurement principle
- Usable for virtually every kind of gas or gas-mix
- Mass flow measurement and control for a wide scope of applications
- Digital pc-board with additional interfaces for DeviceNet, PROFIBUS DP, Modbus-RTU and FLOW-BUS
- Precise control mode and good response times
- Compact and robust design
- IP65 for full product range
- Bodies available in Aluminum and stainless steel (AISI 316) for corrosive gases
- Sensor made of stainless steel
- Less sensitive to dirt and humidity
- No inlet pipe required
- Measurement without moving parts
- Modern multi-coloured TFT display
- IP65 compliant
- Operator buttons on the instrument
- Customized adjustable multi-functional display: actual flow, totalizer with memory and reset, alarm, setup and much more
Specifications
Brand
BSP Connection
- 1” BSPP Female
- 1/4” BSPP Female
- G 1” Female
- G 1/2” Female
- G 1/4” Female
Enclosure, Body Material
- 316 Stainless Steel
- Aluminum
Environmental Protection
- IP65
Input
- 0-5 Vdc
Tube Connection
- 1/2” Tube
- 1/4” Tube
- 1/8” Tube
- 20 mm Tube
VCR / VCO Connection
- 1/4” VCR
