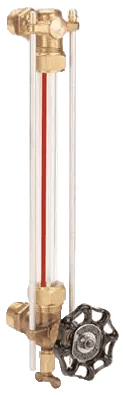

V-Series Tubular Glass Level Gage

Jerguson Gage & Valve offers a complete line of brass, bronze and stainless steel tubular glass gage valves for economical service.

The standard straight-through flow design features a durable cast aluminum wheel. Connections of 1/2 or 3/4 inch NPT are available for attaching the valve to the vessel.

Highly durable Pyrex® gage glass is available with outside diameters of 5/8 or 3/4 inch. Visibility lengths vary as required. Guard rods are recommended to protect the glass from damage, and for added safety.

Series VA Automatic

These tubular glass gage valvesfeature bronze body construction. They come complete with corrosiveresistant ballchecks for automatic closure in the event of glass breakage. This ensures safety and prevents the loss of fluid. Maximum working pressure is 400 PSI @ 100º F, or 200 PSI @ 400º F.

Series VB Non-Automatic

These bronze valves are similar to above models. However, ballchecks are notstandard, thus making operation non-automatic.A 1/4" needle drain valve in the lower unit accommodates a breakage condition. Either a 1/4" lower armball or a petcock is available upon request. Sizes, packing materials and working pressures are identical to Series VA Models.

Series VC Automatic

Conforming to ASME power-boiler code requirements, these gage valves feature stainless steel ballchecks in both upper and lower units. This provides automatic closure in the event of glass breakage and requires the ballcheck in the lower valve to rise vertically to its seat.

A safety handle is also provided for manual operation of the 5/16" diameter drain valve. This valve is of the full-flow ball valve design.

The valve body is constructed of rugged, heavy pattern bronze. Standard packing materials are wearresistant Teflon© PTFE. Maximumworking pressure israted at 500 PSI @ 100º F, or 250 PSI @ 400º F.

Series VE Non-Automatic

These gage valves are identical in every respect to above models, except for the non-autom atic design. Ballchecks are not included.
