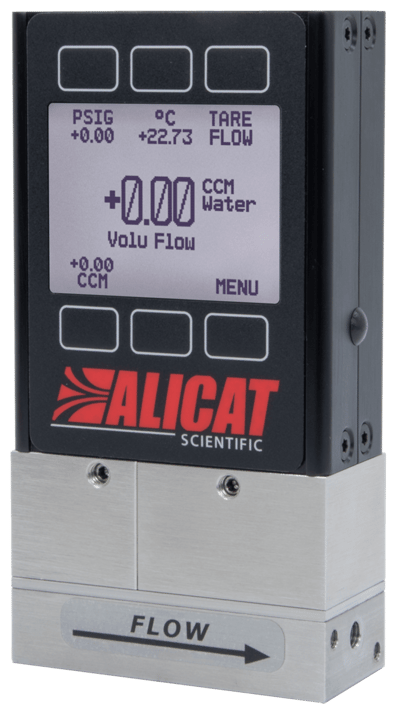

L-Series Liquid Flow Meter
Brand: Alicat ScientificL-series Liquid Flow Meters simultaneously measure volumetric flow rate, liquid pressure, and liquid temperature in real time.
Features- Multi-variable process measurements: Simultaneously measure volumetric flow, liquid pressure, and liquid temperature
- User changeable units of measurement: Change the unit of measurement for pressure, flow, or temperature from our extensive list of engineering units
- Monochrome backlit LCD with integrated touchpad: Easily read measurements using the backlit display and control configurations with the user-friendly integrated touchpad
- Optional integrated dual flow totalizers: Totalize volumetric flow every 1 ms for precise tracking of total flow over time
- Communication protocols: Analog, RS–232, RS–485, DeviceNet, EtherCAT, EtherNet/IP, Modbus RTU or TCP/IP, PROFIBUS
- Displays: Backlit monochrome or color; integrated or panel–mount
- Process connections: NPT, SAE, AN, BSPP/G, compression, VCR, or VCO fittings
- Elastomers: 302, 303, 304, and 316L stainless steel; FKM (Viton)
- Calibration: Custom liquid; custom calibration points
Specifications
Brand
Full Scale Range
- 0.5 CCM to 10 LPM
Flow Measurement Range
- 2 % to 100 % of Full Scale
Calibration Accuracy
- NIST-traceable: ± 2 % of Full Scale
Repeatability
- ± 2 % of Full Scale
Response Time
- Typical < 10 millisecond
Warm-Up Time
- < 1 s
Operating Temperature
- -10° (Non-freezing) to +60° C
Operating Pressure
- Full Scale 100 psig
Differential Pressure
- Maximum 75 psid
Proof Pressure
- 200 psid
Environmental Protection
- IP40
Accuracy
- Volumetric Flow at Calibration Conditions: ± 2 % of Full Scale
- Temperature: ± 0.75° C
- Pressur: ± 0.5 % of Full Scale
- Analog Signal: ± 0.1 % of Full Scale Additional Uncertainty
Wetted Naterial
- 302, 303, 304, and 316L Stainless Steel, FKM (Viton)
Communication
- RS-485 Serial
- Modbus RTU (over RS-232 or RS-485 Serial)
- Modbus TCP/IP
- DeviceNet
- EtherCAT
- EtherNet/IP
- PROFIBUS
Power Requirement
- 9-28 Vdc, 40 mA
- 12-28 Vdc, 40 mA
- 12-28 Vdc, 80 mA
Process Connection
- M5 Female
- 1/8” NPT Female
- 1/4” NPT Female
