Pneumatic Solenoid Valve - H Micro Series

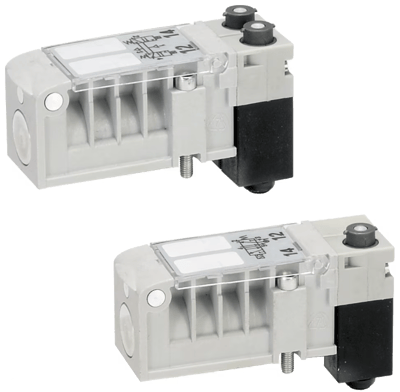

The H Micro series valve is an internal/external air piloted subbase style valve.

The H Micro valves are plugin only and are mounted on a manifold base which holds 4 valve modules.

Available valve functions are:

The manifold bases hold four valve modules, and contain circuit boards, for collective wiring, that can be either single address (for single solenoid valves), or double address (for double solenoid valves).

The manifold bases have either side or bottom M7 ports.

Several sizes of tube fittings can be installed in the M7 ports.

The collective wiring options are:

The H Micro valve manifold can be field converted from internal to external pilot supply by moving the M7 plug located on the right hand end plate to the appropriate port.

Internal pilot operation means the supply pressure on the #1 port is directed to the end of the valve where the solenoid operator, when actuated, allows the supply pressure to pass, which then is applied to the piston to shift the spool.

External pilot is when the valve gets its "internal" pressure from an "external pilot port" instead of the #1 port.

These valves can be used with Isysnet, Turcknet, or Moduflex fieldbus.
